Bearing (mechanical)

Lore & Background

The term 'bearing' is derived from the verb 'to bear,' as a bearing allows one part to support another. The simplest bearings are bearing surfaces cut into a part, while others are separate devices. A recovered example of an early rolling-element bearing is a wooden ball bearing from the Roman Nemi ships, dated to 40 BC. The caged ball bearing was described by Galileo in the 17th century.

Reader's Guide

Bearings have played a pivotal role in the Industrial Revolution, allowing new industrial machinery to operate efficiently by reducing friction in wheel and axle assemblies. Bearings continue to be critical in applications from dental drills to Mars Rover aerospace components. The most common bearing remains the plain bearing, valued for its low cost and acceptable performance with suitable lubrication.

Did You Know?

• The Egyptian drawings in the tomb of Djehutihotep show massive stone blocks moved on sledges pulled over wetted sand, not rollers.
• The first practical caged-roller bearing was invented in the mid-1740s by horologist John Harrison for his H3 marine timekeeper.
• Watchmakers produce 'jeweled' watches using sapphire plain bearings to reduce friction for more precise timekeeping.

Purpose and Design Philosophy

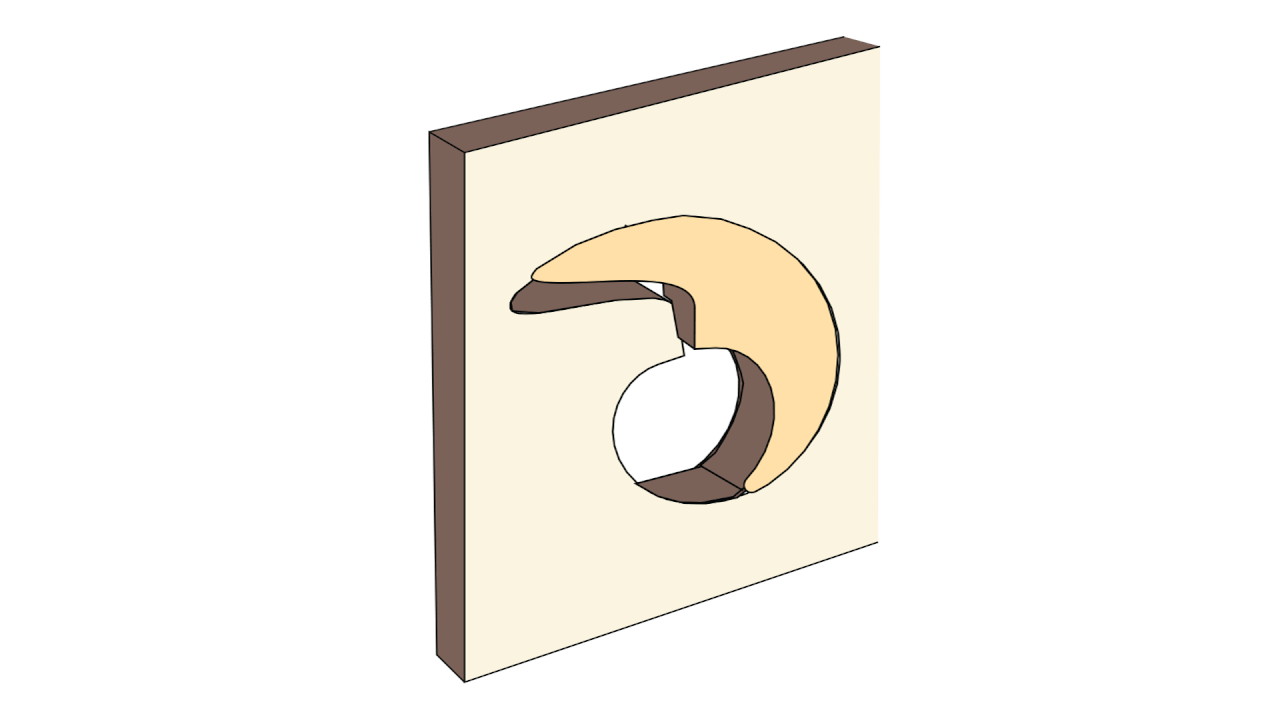

A bearing, at its core, is a machine element whose job is to constrain relative motion between parts to only the movement that is actually desired while simultaneously reducing friction. The word itself comes from the verb "to bear" — one part literally supports another. The simplest implementations are nothing more than bearing surfaces cut or formed directly into a component, with varying degrees of control over form, size, roughness, and location. At the other extreme, the most sophisticated bearings built for the most demanding applications are extraordinarily precise components whose manufacture demands some of the highest standards of current technology. Bearings can be classified broadly by the type of operation they perform, the specific motions they permit (free linear movement, free rotation around a fixed axis), or the directions of the loads they must carry. Some designs even prevent a particular motion entirely by carefully controlling the vectors of normal forces acting on the moving parts. This wide spectrum — from a rough surface to a precision-engineered assembly — reflects the fundamental engineering challenge of managing motion and force in mechanical systems.

Types and Mechanical Principles

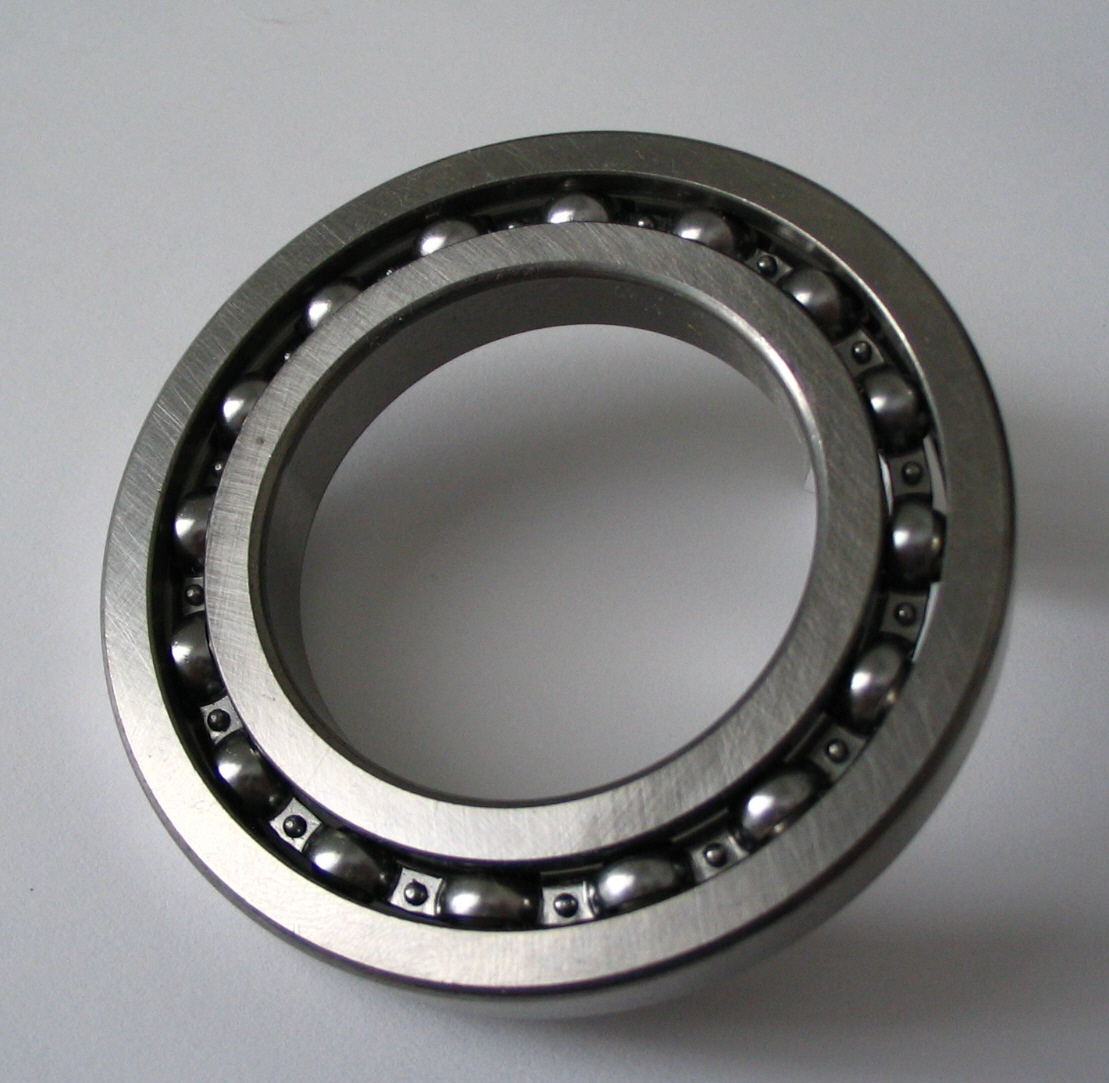

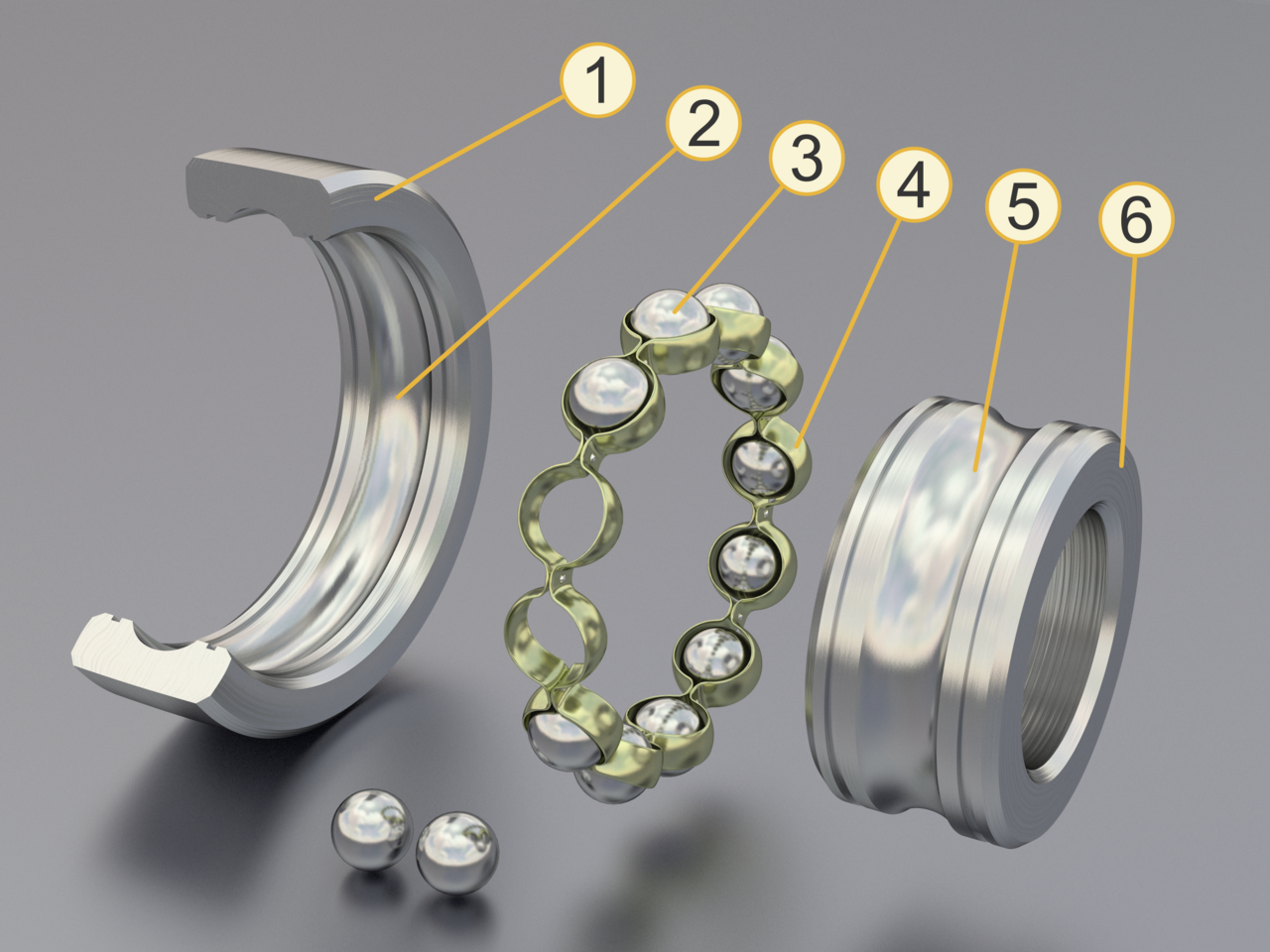

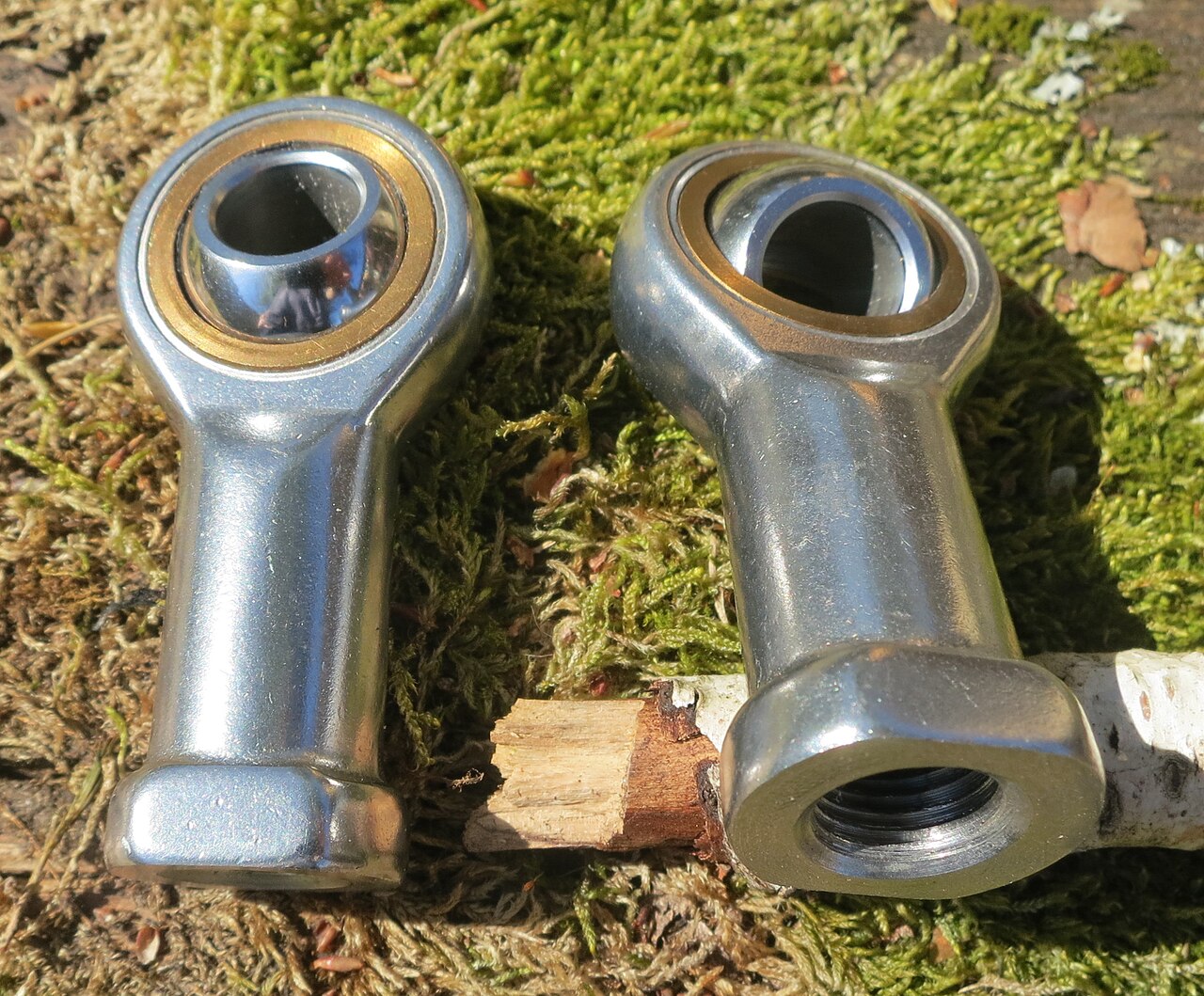

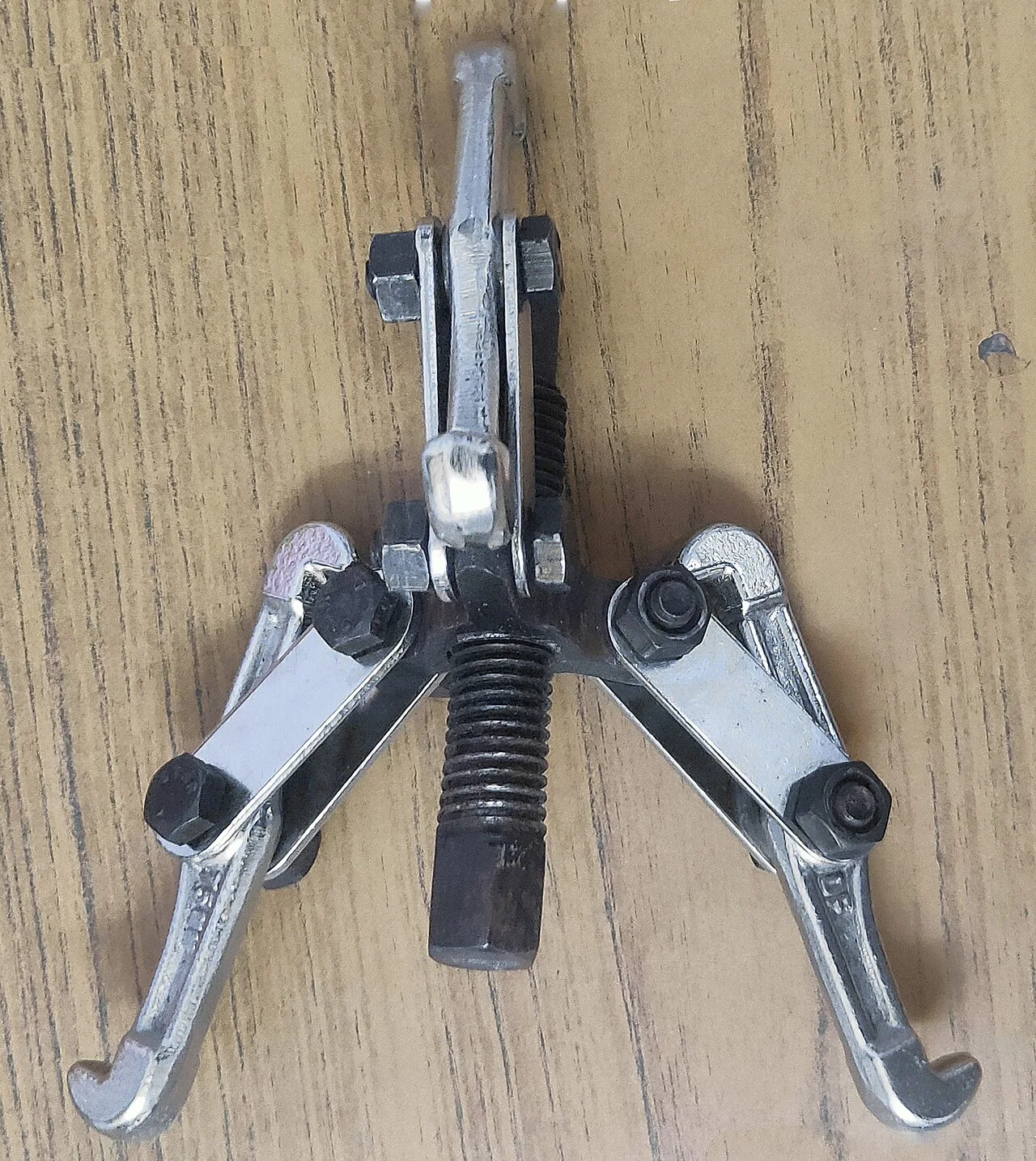

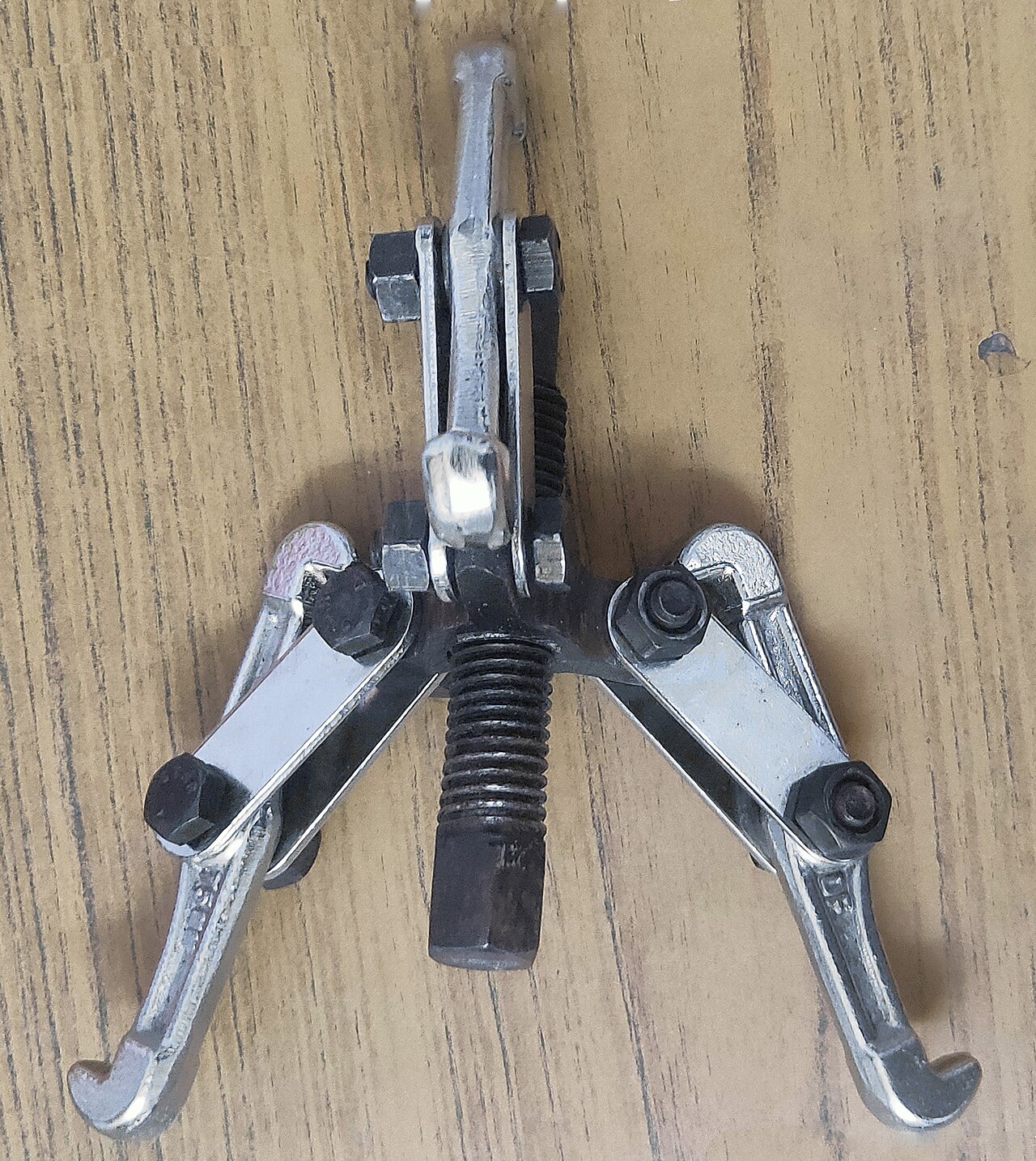

Rotary bearings are the workhorses of mechanical systems, holding rotating components like shafts and axles in place while transferring both axial and radial loads from the source to the supporting structure. The plain bearing represents the simplest form: a shaft rotating within a hole, with lubrication — whether liquid, solid, or gas — applied to reduce friction. The choice of lubricant depends on application-specific factors including temperature, load, and speed. A significant leap in efficiency comes with rolling-element bearings, where balls or rollers with circular cross-sections sit between the races or journals of the assembly, replacing sliding friction with rolling contact. This principle underpins both ball bearings and roller bearings. Because no single design serves every need, a wide variety of bearing configurations exists to match the specific demands of each application, targeting maximum efficiency, reliability, durability, and performance. The diversity of available designs reflects the breadth of mechanical challenges engineers must solve across industries.

Historical Evolution

The story of the bearing stretches back millennia, though popular assumptions about its origins are not always supported by evidence. It is sometimes speculated that wooden rollers under sleds predate the wheel, but Egyptian tomb drawings from Djehutihotep actually depict massive stone blocks moved on wetted sand rather than rollers. What is documented is that wheeled vehicles with plain bearings appeared between roughly 5000 BC and 3000 BC, and a recovered wooden ball bearing from the Roman Nemi ships, dated to 40 BC, supports a rotating table. Leonardo da Vinci sketched ball bearings in a helicopter design around 1500, the first recorded aerospace use. Galileo described the caged ball bearing in the 17th century. John Harrison built the first practical caged-roller bearing in the mid-1740s for his H3 marine timekeeper. Philip Vaughan received the first ball-bearing patent in 1794, and Jules Suriray patented the radial-style ball bearing in 1869, which was fitted to the winning bicycle in the Paris-Rouen race that same year.

Industrial Impact and Legacy

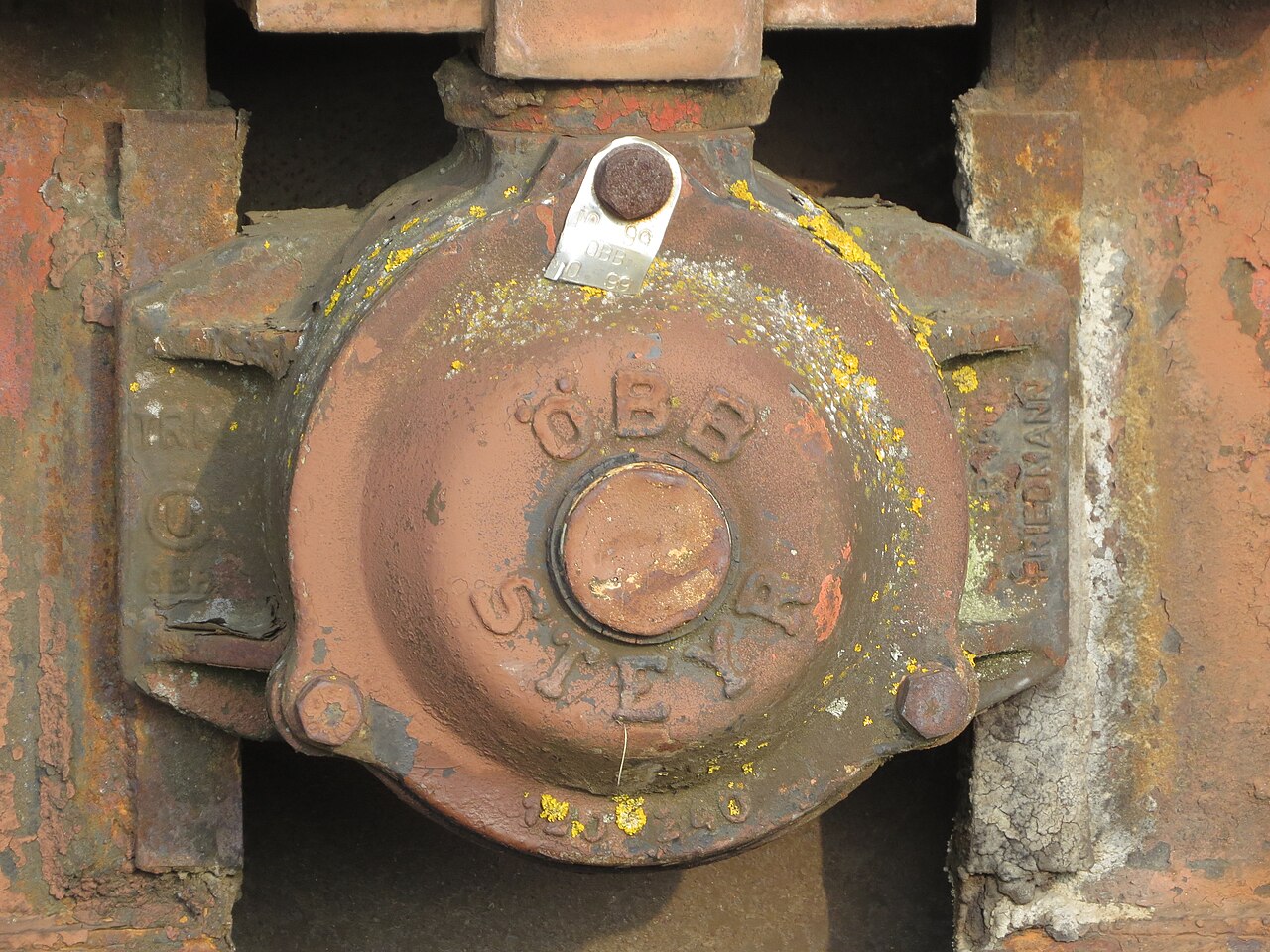

Bearings were not merely a convenience during the Industrial Revolution; they were a pivotal enabler. By holding wheel and axle assemblies and dramatically reducing friction compared to earlier non-bearing designs, they allowed the new industrial machinery to operate with the efficiency that mass production demanded. This practical necessity helped spawn an independent bearing industry. Friedrich Fischer, in 1883, developed a method for milling and grinding balls to equal size and exact roundness, laying the groundwork for what became FAG, with his hometown Schweinfurt growing into a world-leading center for ball bearing production. Sven Wingquist's 1907 Swedish patent for the self-aligning ball bearing design, and Henry Timken's 1898 tapered roller bearing patent (followed by the company that grew over a century to produce bearings of all types), further cemented bearings as a specialized industrial sector. Erich Franke's 1934 wire race bearing and Bud Wisecarver's 1972 vee groove linear bearing show the tradition of innovation continuing well into the modern era.
